型號 modle |
處理量 Capacity |
溶氣量 Dissolved gas |
功率表 KW Power |

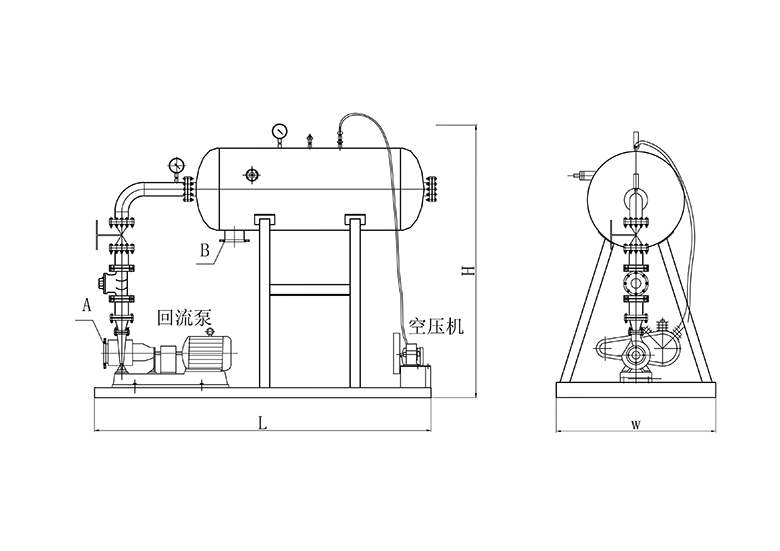

規格尺寸（m） Dimension |
管口表 DN （Nozzle list） | ||||
| m³/h | m³/h |
回流泵 Reflux pump |
加氣機 Aerating machine | L | W | H |
進水口 iniet (A) |
出水口 Outlet (B) | |
| WFA-2 | ～2 | ～0.7 | 0.55 | 0.55 | 1 | 0.45 | 0.8 | 25 | 25 |
| WFA-3 | ～3 | ～2 | 0.75 | 0.55 | 1.3 | 0.6 | 1.3 | 32 | 32 |
| WFA-5 | ～5 | ～3 | 1.1 | 0.55 | 1.3 | 0.6 | 1.3 | 32 | 32 |
| WFA-10 | ～10 | ～4 | 1.5/5.5 | 0.75 | 1.6 | 0.6 | 1.5 | 40 | 40 |
| WFA-15 | ～15 | ～5 | 2.2/5.5 | 0.75 | 1.8 | 0.6 | 1.5 | 40 | 40 |
| WFA-20 | ～20 | ～7 | 3.0/5.5 | 0.75 | 1.8 | 0.6 | 1.5 | 40 | 40 |
| WFA-30 | ～30 | ～12 | 3.0/5.5 | 0.75 | 2 | 0.7 | 1.7 | 50 | 50 |
| WFA-40 | ～40 | ～15 | 4.0/5.5 | 1.5 | 2.3 | 0.8 | 1.8 | 65 | 65 |
| WFA-50 | ～50 | ～20 | 7.5 | 1.5 | 2.3 | 0.8 | 1.8 | 80 | 80 |
| WFA-60 | ～60 | ～25 | 7.5 | 1.5 | 2.3 | 0.9 | 1.9 | 80 | 80 |
| WFA-70 | ～70 | ～30 | 11 | 1.5 | 2.3 | 0.9 | 1.9 | 80 | 80 |
| WFA-80 | ～80 | ～30 | 11 | 2.2 | 2.7 | 1 | 2 | 80 | 80 |
| WFA-100 | ～100 | ～40 | 11 | 2.2 | 2.7 | 1.1 | 2 | 80 | 80 |
| WFA-120 | ～120 | ～45 | 15 | 2.2 | 3 | 1.1 | 2.2 | 100 | 100 |
| WFA-150 | ～150 | ～55 | 18.5 | 3 | 3 | 1.2 | 2.2 | 100 | 100 |
| WFA-200 | ～200 | ～75 | 22 | 3 | 3 | 1.4 | 2.2 | 125 | 125 |
| WFA-300 | ～300 | ～100 | 30 | 3 | 3.2 | 1.4 | 2.2 | 150 | 150 |
| WFA-400 | ～400 | ～140 | 37 | 4 | 3.3 | 1.6 | 2.3 | 200 | 200 |
| WFA-500 | ～500 | ～170 | 45 | 5.5 | 3.4 | 1.6 | 2.3 | 200 | 200 |
| WFA-650 | ～650 | ～240 | 55 | 5.5 | 3.6 | 1.8 | 2.5 | 200 | 200 |
